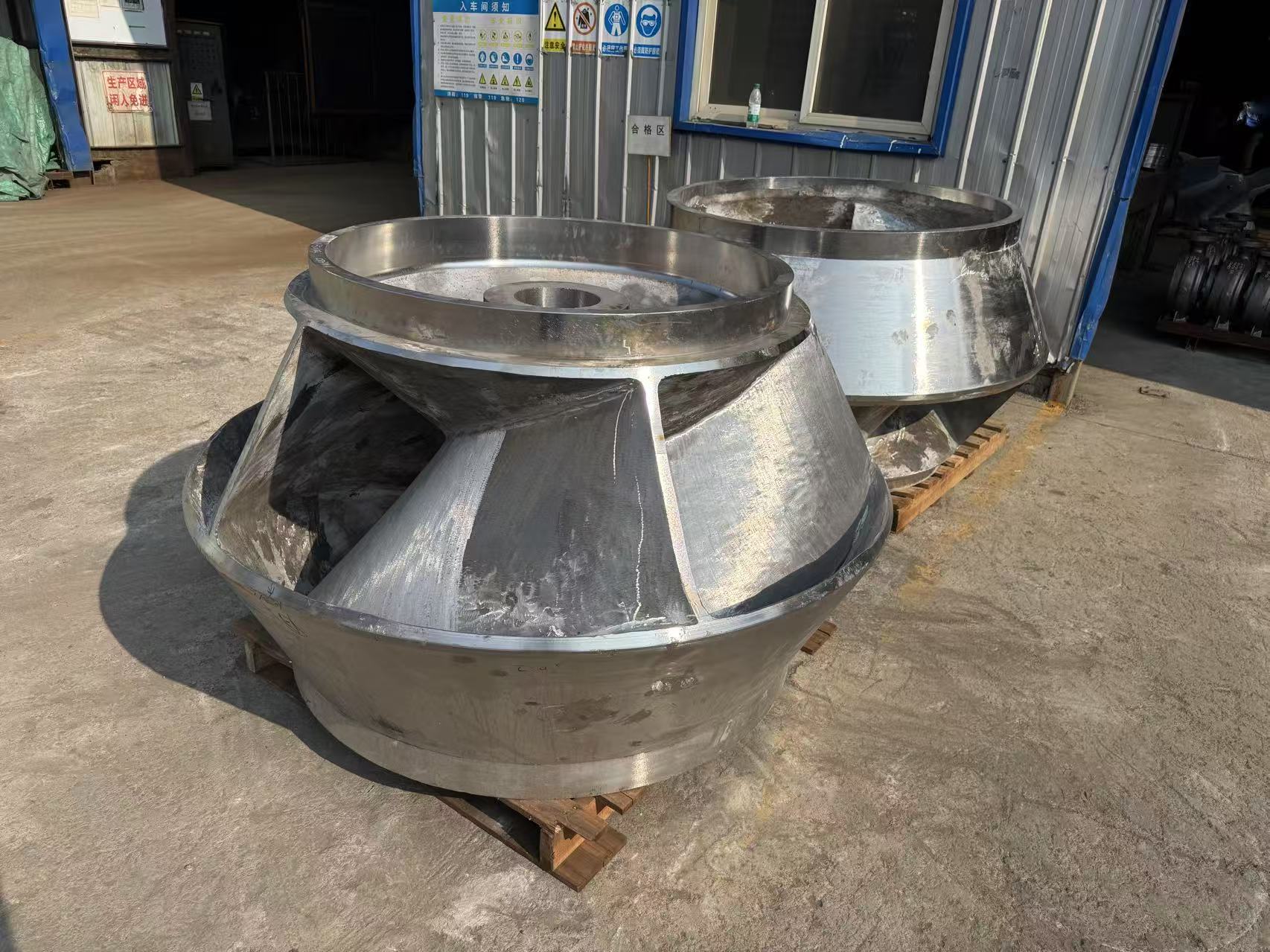

Introduction of cast steel split case pump lmpeller:
Cast steel split case pump lmpeller directly works on the medium through high-speed rotation, which can determine the flow rate and operating efficiency of the pump.Our split case pump lmpeller uses high-precision stainless steel and is optimized for scenarios such as clear water, sand-containing water, and mildly corrosive media. It has the characteristics of high efficiency, energy saving, and wear resistance.
Advantages of split case pump lmpeller:
1. Split case pump lmpeller is made of high-strength stainless steel, and its wear and corrosion resistance is twice that of ordinary impellers.
2. Split case pump lmpeller is produced in strict accordance with ISO 1940 standards, and key parameters such as impeller diameter and shaft hole size match the original machine 1:1.
3. The blade edges of the split case pump lmpeller have been rounded and strengthened, which can reduce the wear of the edge of the split case pump lmpeller by the eddy current of the medium and extend the service life.
Application scenarios of split case pump lmpeller:
1. Industrial field: split case pump lmpeller can be used for material transportation in chemical plants and pulp transportation in paper mills.
2. Municipal engineering: sand casting lmpeller can be used in scenarios such as urban sewage treatment and pressurized pumping stations for waterworks.
3. Agriculture and water conservancy: sand casting lmpeller can be used for river dredging equipment or reservoir pumping stations.
4. Mining and energy: sand casting lmpeller can be used for underground drainage of coal mines and metal slag slurry transportation.
How to extend the service life of sand casting lmpeller:
1. Clean the filter regularly: check the filter pressure difference every week to prevent the filter from clogging and causing negative pressure at the inlet, while avoiding the accumulation of impurities from the filter into the sand casting lmpeller.
2. Special media pretreatment: when conveying fiber-containing or high-viscosity media, a cutting device or agitator can be added before import to prevent winding of sand casting lmpeller blades.
3. Do not run over parameters: strictly control the actual flow rate and head within the design range of sand casting lmpeller, otherwise it will cause split case pump impeller casting to withstand excessive water impact and accelerate blade fatigue.
4. Weekly inspection: open the pump cover after shutdown, observe whether there is wear, cracks or impurities on the surface of the split case pump impeller casting, and clean up the impurities with a soft brush in time.
5. Monthly measurement: check the radial and axial gaps between the split case pump impeller casting and the pump housing. If the gap is too large, the bearing position needs to be adjusted or the bushing replaced to prevent the split case pump impeller casting from shaking and exacerbating wear.
FAQ:
Q1: How do I determine the split case pump impeller casting model I need?
Provide your Zhongkai pump brand and model, and our technical team can quickly match the corresponding model.
Q2: Can the split case pump impeller casting continue to be used if there is a crack?
It is not recommended that cracks in split case pump impeller casting will cause balance failure and flow drop, and even damage the pump body in severe cases.
Customized service:
Our company can provide customized service. You can send us your detailed drawings and purchase requirements to ensure that the product is highly compatible with your needs.
Why choose us:

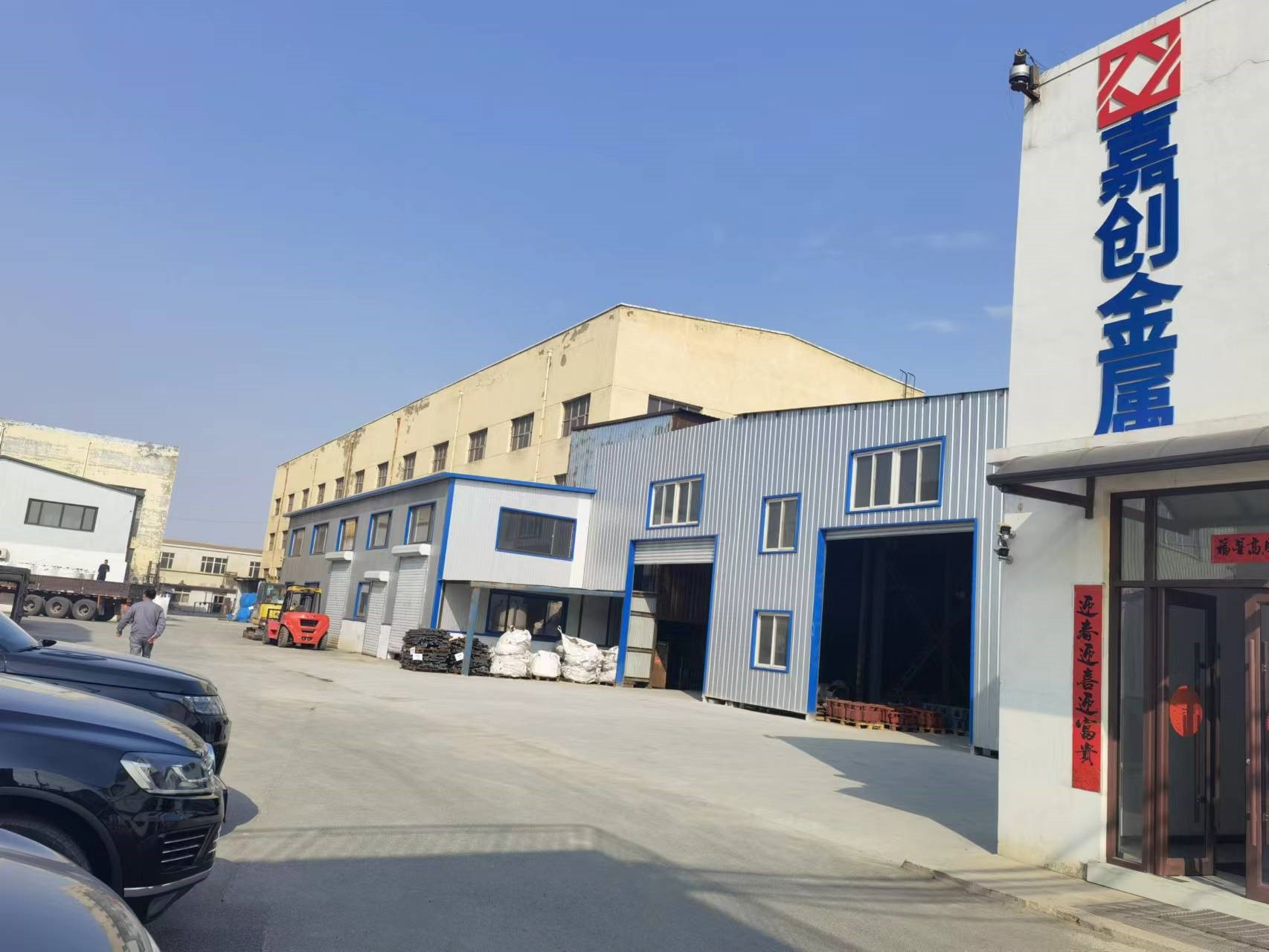

As a manufacturer of Zhongkai pump impellers, Dalian Jiachuang Metal Manufacturing Co., Ltd. has advantages that cannot be surpassed by its peers in product quality and efficiency. Relying on many years of experience in metal manufacturing, our products perform well in model matching and operating stability, and we have a strict quality control process, and each product has undergone strict testing to ensure the quality of the factory. Choose Dalian Jiachuang Metal Manufacturing Co., Ltd., you can get excellent products and trustworthy long-term partners!
