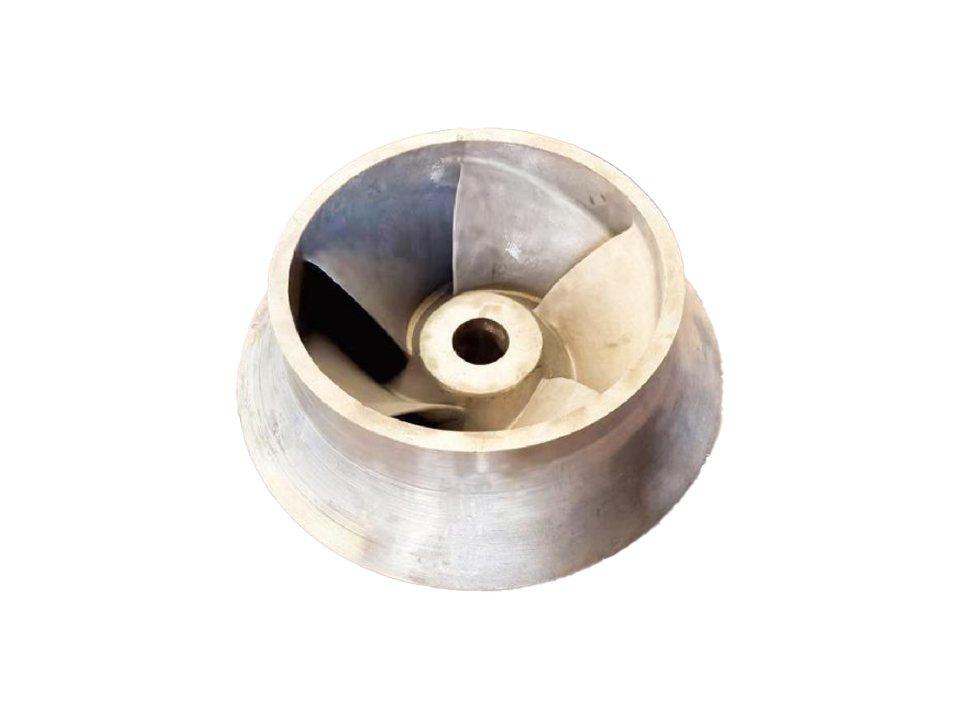

Introduction of pump impeller casting:
Pump impeller casting made of duplex stainless steel made by sand casting process is an iron-chromium-nickel-molybdenum corrosion-resistant casting. The metallographic structure of duplex stainless steel composed of austenitic and ferrite evenly distributed gives pump impeller casting excellent overall performance. The sand casting process can produce pump impeller casting with complex shapes and precise dimensions, which fully meets the design needs of various chemical pumps. The performance of pump impeller casting will directly affect the operating efficiency and stability of the pump.
Features of cast iron pump impeller:
1. The interaction of cast iron pump impeller material forms a layer of corrosion-resistant passivation film on the surface of the impeller. This layer of passivation film can isolate the erosion of a variety of corrosive media and extend the service life of cast iron pump impeller.
2. When the cast iron pump impeller is subjected to the huge centrifugal force generated by high-speed rotation and the impact of the conveying medium, it is not prone to deformation and rupture. It is very reliable in high-load and long-term operation scenarios.
3. In the process of chemical transportation, cast iron pump impeller often comes into contact with media containing solid particles. Through high hardness and good wear resistance, our cast iron pump impeller can resist the scouring and wear of particles and maintain the stable performance of the pump.
Application of cast iron pump impeller:
1. Oil and natural gas: in the process of crude oil extraction, refining, and natural gas treatment, cast iron pump impeller can transport crude oil, petroleum products, and natural gas condensate containing corrosive components.
2. Environmentally friendly water treatment: sand casting impeller can transport sewage containing various pollutants and chemicals in sewage treatment plants, as well as treated water in water purification plants.
3. Power industry: sand casting impeller is usually used in the cooling system of power plants, boiler supply water system, etc., to transport circulating water and chemically treated water with certain corrosive properties.
How sand casting impeller works：
When the chemical pump starts, the motor drives the pump shaft, causing the sand casting impeller to rotate at high speed. The blades on the sand casting impeller push the liquid to rotate together. Under the action of centrifugal force, the liquid is thrown from the center of the sand casting impeller to the edge, and the speed and kinetic energy continue to increase. After the high-speed flow of liquid enters the pump housing, due to the gradual expansion of the flow channel of the pump housing, the flow rate of the liquid slows down, and part of the kinetic energy is converted into hydrostatic energy, and finally discharged from the pump outlet at a higher pressure. At the same time, a low pressure zone is formed in the center of the sand casting impeller. Under the action of external pressure, the liquid is continuously sucked into the sand casting impeller, which realizes the continuous delivery of the liquid.
About us：

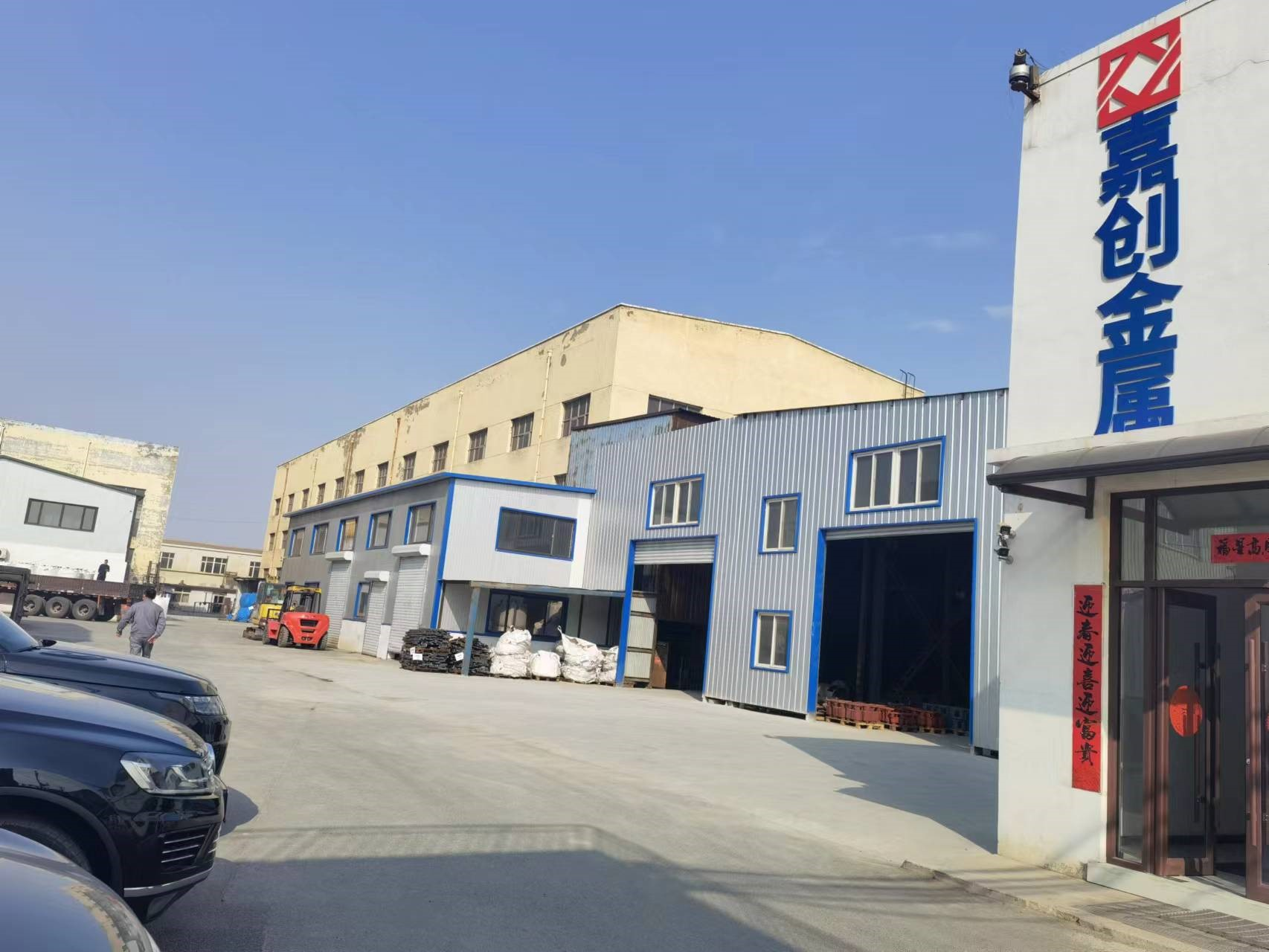

Dalian Jiachuang Metal Manufacturing Co., Ltd. has nearly 300 employees, including 2 senior engineers, 8 engineers, and more than 30 professional and technical personnel of all kinds. We have a modern production site, experienced employees and high work efficiency. We are confident to become a partner that will satisfy you. If you want, please feel free to contact us!
