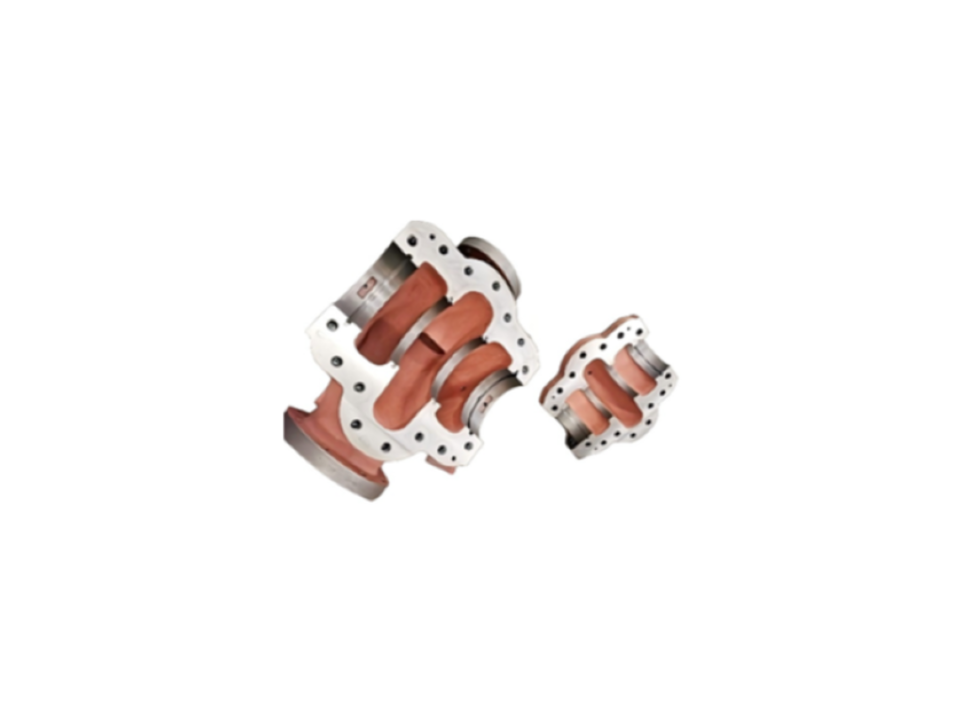

Introduction of centrifugal pump casing casting:
Centrifugal pump casing casting is one of the important components of centrifugal pumps. It is made of carbon steel and made by sand casting process. The role of centrifugal pump casing casting is to collect the high-speed fluid coming out of the impeller, convert the kinetic energy of the fluid into pressure energy, and guide the fluid flow to the outlet, so casting centrifugal pump body is very important for the performance and reliability of the pump.
Advantages of casting centrifugal pump body:
1. Casting centrifugal pump body is made of carbon steel with stable performance, high tensile strength and yield strength, good impact resistance, and can withstand medium pressure for a long time.
2. The overall structure of the casting centrifugal pump body is reasonably designed, and the smooth flow channel can reduce the energy consumption of the conveying medium and improve operating efficiency.
3. After anti-rust treatment, the carbon steel material used in the casting centrifugal pump body has a long service life in a dry and non-corrosive environment, simple daily maintenance, and can reduce long-term use costs.
Installation of casting centrifugal pump body:
1. Before installation, check the surface of the casting centrifugal pump body for defects such as cracks and deformation, ensure that the flange sealing surface is flat, and there are no debris in the flow channel, and also check the firmness of the hoisting point. The load-bearing capacity of the adapted hoisting equipment should be greater than 296kg.
2. When in place and fixed, a dedicated hoisting point should be used to smoothly lift the cast steel centrifugal pump casing to the installation position, adjust the level, and then fix it with anchor bolts to prevent displacement during operation.
3. During installation, the impeller, seals and other components should be installed in the pump body in sequence to ensure that the mating gap between the components is reasonable. When connecting the inlet and outlet water pipelines, the flange surface should be padded with gaskets, and the bolts should be tightened to prevent leakage.
4. After the installation is complete, a trial operation inspection should be carried out to observe whether the operation of cast steel centrifugal pump casing is stable, whether there is abnormal noise and vibration, and check whether there is leakage in each connection part. If there is a problem, stop and adjust immediately.
Application of cast steel centrifugal pump casing:
1. Cast steel centrifugal pump casing is often used in industrial circulation systems for cooling water and hydraulic oil transportation in factories.
2. In the field of municipal water supply and drainage, cast steel centrifugal pump casing is often used in the pressurization of urban tap water and the medium delivery of sewage treatment plants.
3. In construction scenarios, cast steel centrifugal pump casing can be used in temporary water supply or drainage equipment on construction sites.
Customized service:
Our company can provide customized service. You can send us your detailed drawings and purchase requirements to ensure that the product is highly compatible with your needs.

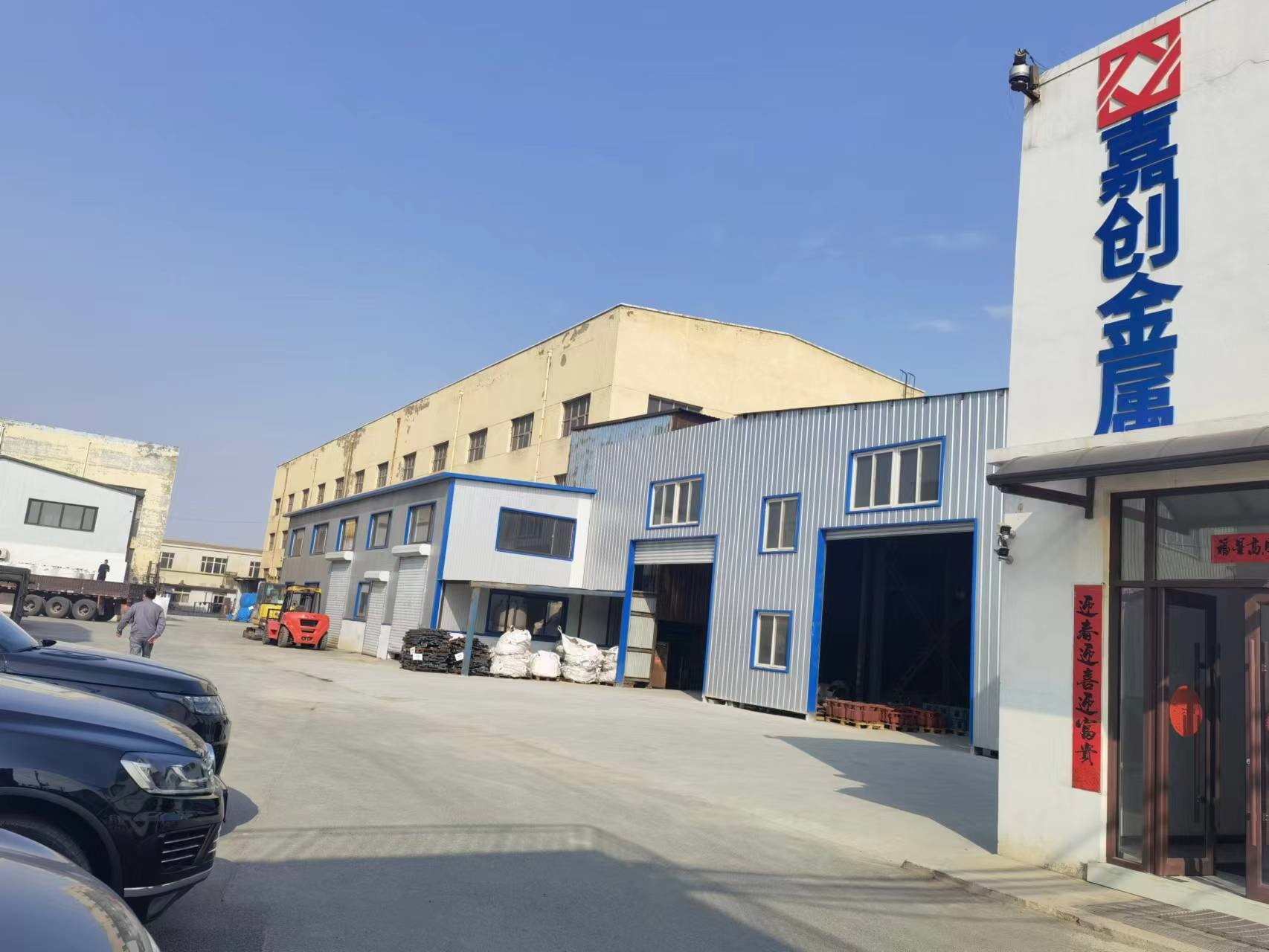

Why choose us:
1. Our company's sand casting technology is mature, product quality is guaranteed, and product pass rate is high.
2. Our company has a 12-month warranty period. If there is a quality problem that is not artificially damaged during the warranty period, it can be repaired free of charge.
3. Our company provides installation guidance and technical support, and can answer customer questions by phone or video.
