Introduction of impeller:

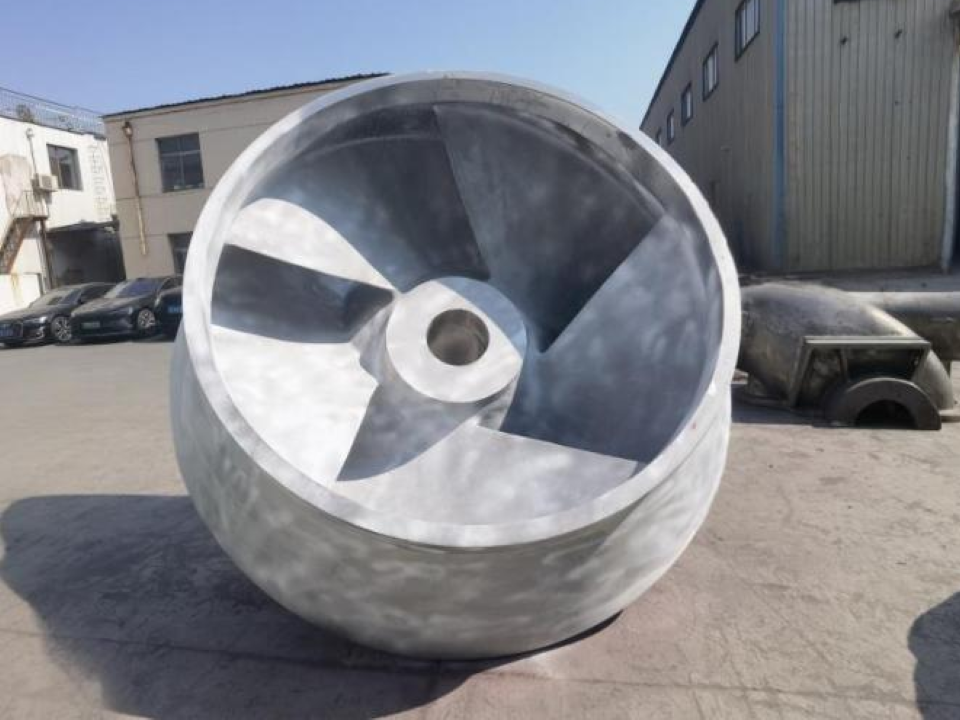

Casting impeller consists of blades and front and rear covers. casting impeller is more efficient and more difficult to manufacture, and it is most used in pipeline pumps. The design of this casting impeller forms a sealed channel that guides fluid from the impeller eye to the outer edge. The front cover faces the suction port, and the motor is close to the back cover. The curved blades in the enclosed space guide the path of the fluid, which has an important impact on the performance of the impeller. Impeller is suitable for conveying clean liquids with smaller viscosity and no particles such as clear water and solutions.
Features of impeller:
1. Impeller blades are closed with front and rear covers on both sides, the flow channel is complete and smooth, and the fluid flows internally with less leakage, less resistance, and high hydraulic efficiency.
2. The closed structure of stainless steel casting impeller can withstand higher working pressure and is suitable for conveying high-pressure fluids.
3. The structure of stainless steel casting impeller is highly rigid and the high-speed rotating vibration amplitude is small, which can reduce the wear and tear of the equipment due to vibration and extend the service life of the equipment.
Application of stainless steel casting impeller:
1. High-pressure cleaning equipment: stainless steel casting impeller can produce strong and stable water flow. This is what is needed for effective cleaning by a high-pressure washer.
2. Water supply system: stainless steel casting impeller can help municipal water supply networks efficiently pump fresh water from reservoirs to businesses and households.
3. Boiler feed pump: in a power plant, a closed casting impeller is required to feed high-pressure and high-temperature water into the boiler to produce steam.
4. Petroleum refining: closed casting impeller is used to transport refined products in the oil and gas industry. The closed design prevents fluid leakage and maintains high efficiency in important processes.
Parameters of closed casting impeller:
Product name: closed casting impeller.
Material: duplex stainless steel.
Manufacturing process: sand mold casting.
FAQ:
Q: Why is closed casting impeller more efficient for cleaning fluids?
A: Closed casting impeller is closed on both sides, which can reduce fluid bypass and improve hydraulic efficiency. This design allows the impeller to produce higher pressure with less energy and is suitable for handling clean fluids.
Customized service:
Our company can provide customized service. You can send us your detailed drawings and purchase requirements to ensure that the product is highly compatible with your needs.
About us:

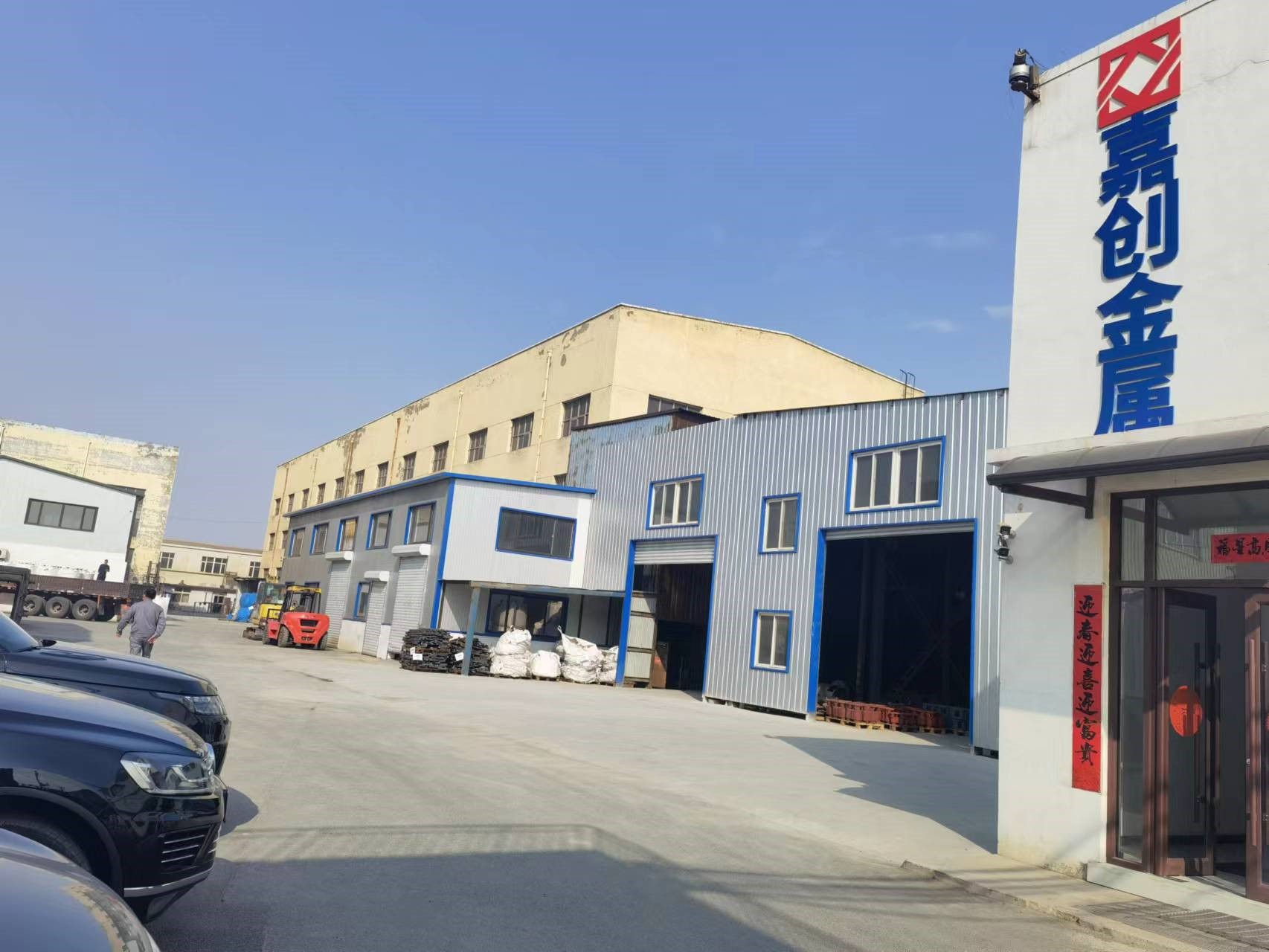

Dalian Jiachuang Metal Manufacturing Co., Ltd. is located in Dalian City, Liaoning Province, covering an area of 30,000 square meters. The main business includes ferrous metal casting, mold manufacturing, machining, etc. If you are purchasing metal castings, you are welcome to contact us at any time!
